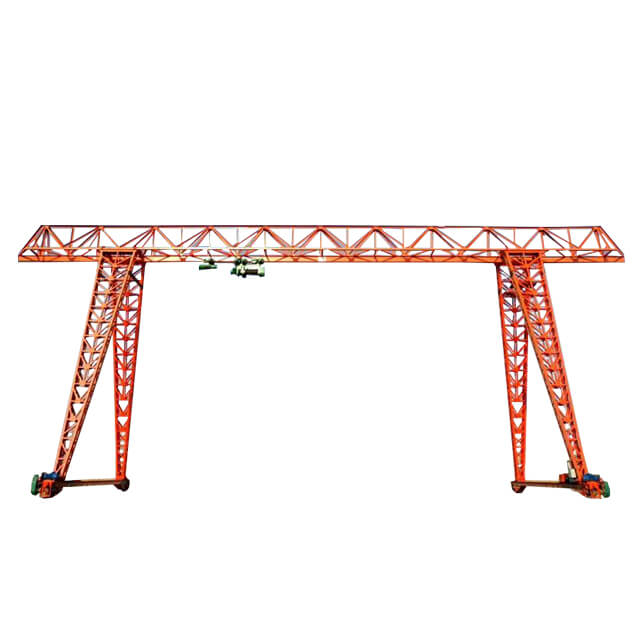

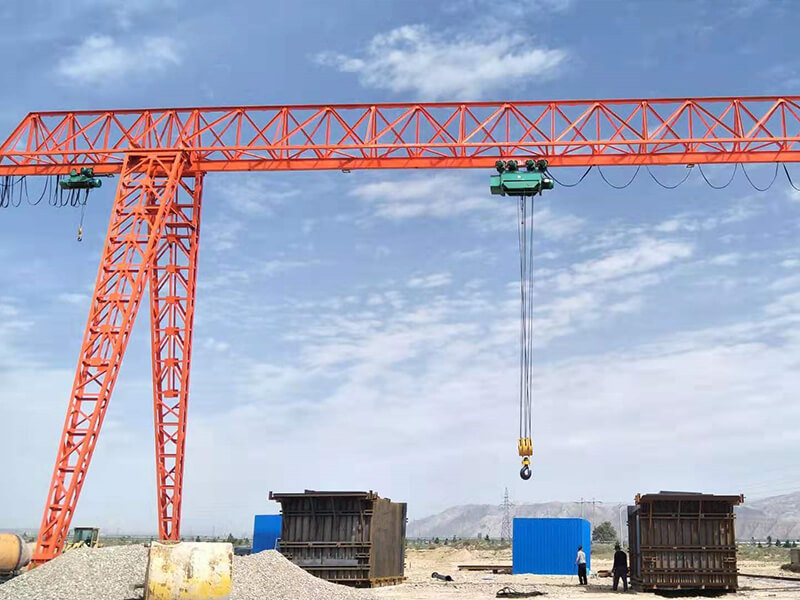

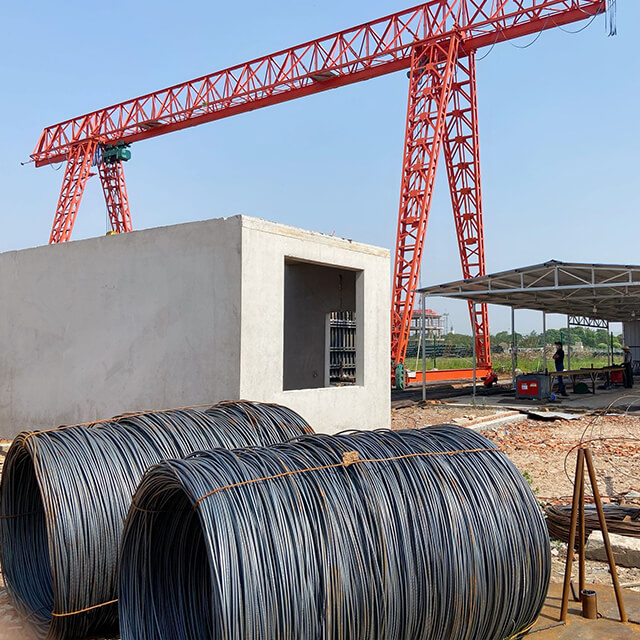

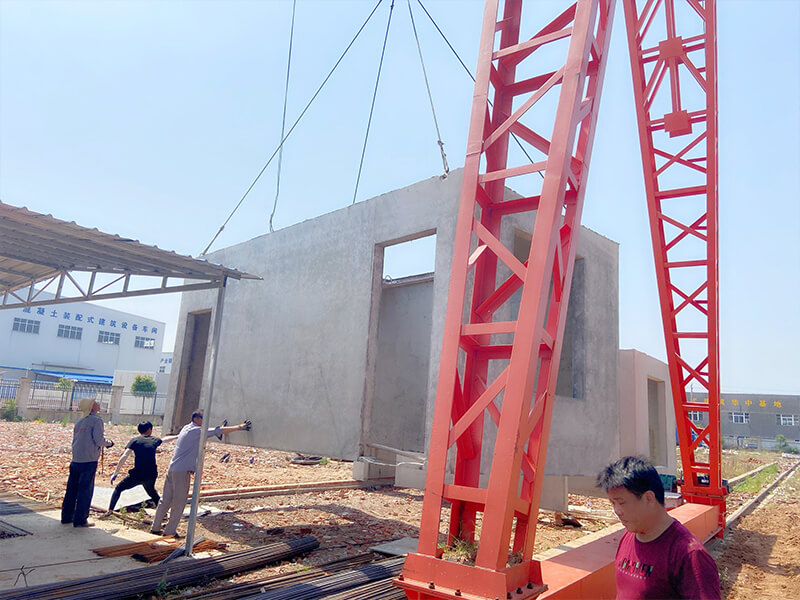

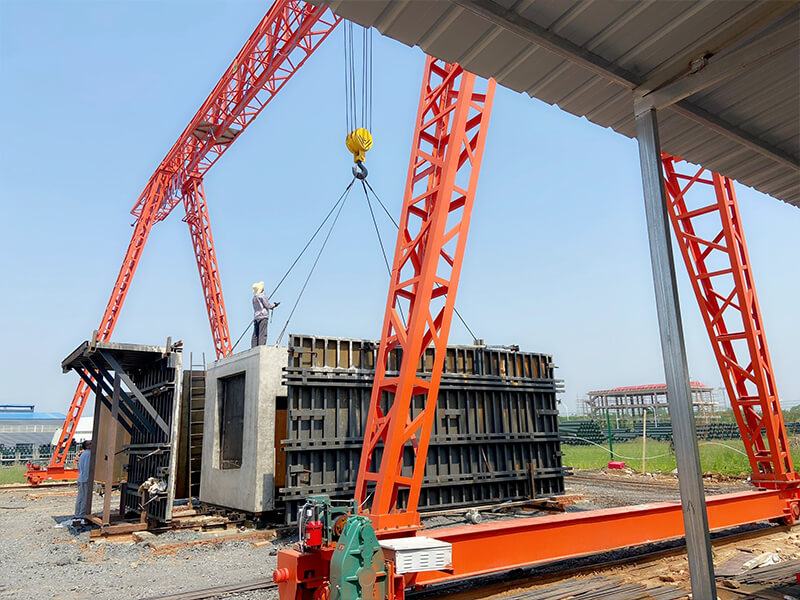

Rail Mounted Gantry Crane

Share to:
Quantity:
7
8


9
10


1. Equipment Parameters


Lifting capacity

32ton


Total power

33.9kw

Lifting height

12.5m

Max wheel load

338.5KN

Crane Span

26m

Working duty

A3

Cantilevers

Left 8m, right 8m

Power supply

380v, 3phase

Hoist type

Electric Wire Rope Hoist

Remote control

Pendant with cable

Lifting speed

3m/min

Insulation class

F

Cross traveling speed

16m/min

Bearings

LYC

Long traveling speed

77.5m/min

Wire rope core

Fibre

Lifting power

18.5kw

Overload limiter

include

Cross traveling power

2*2.2kw

Track type

43#

Long traveling power

2*5.5kw

Weight

36ton

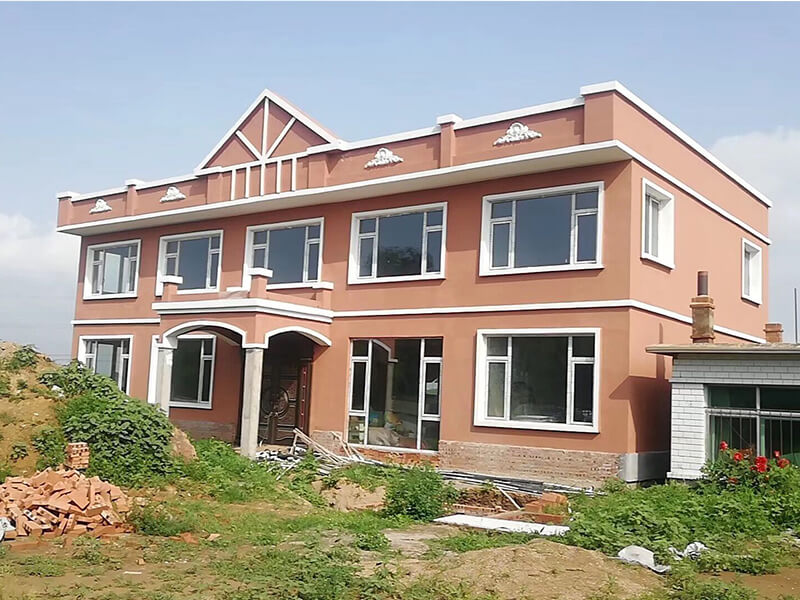

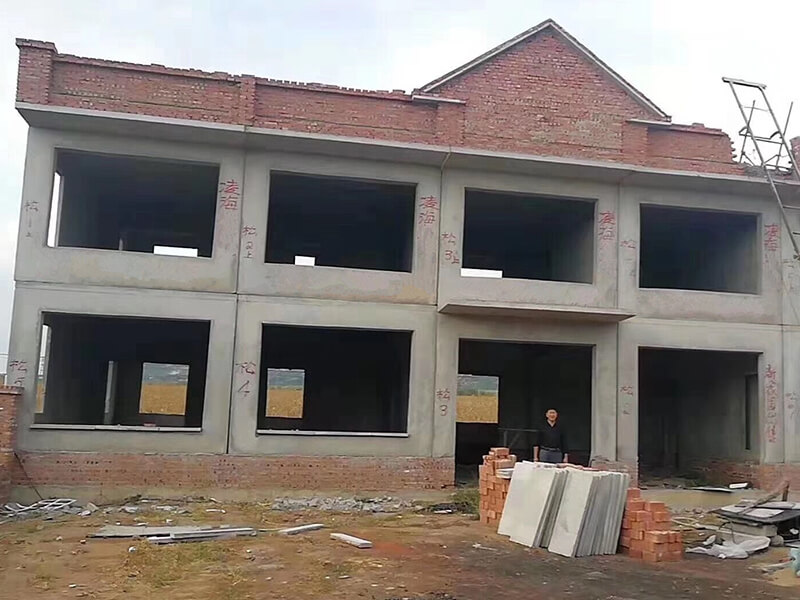

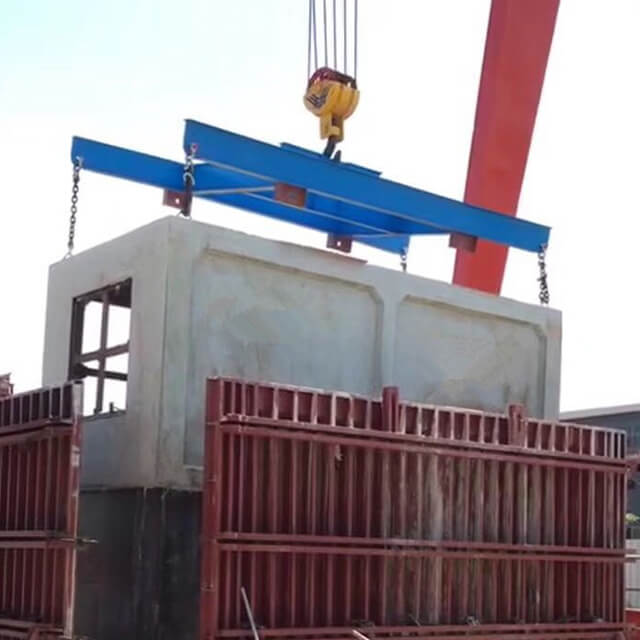

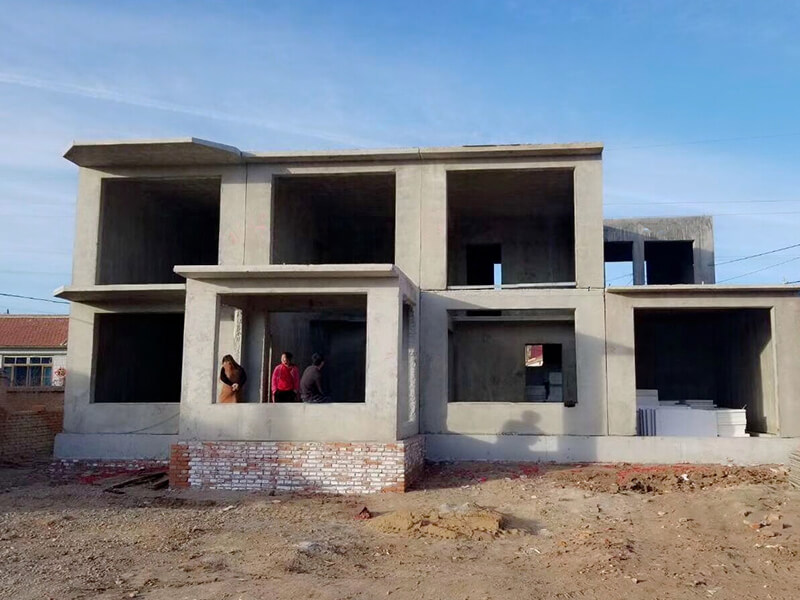

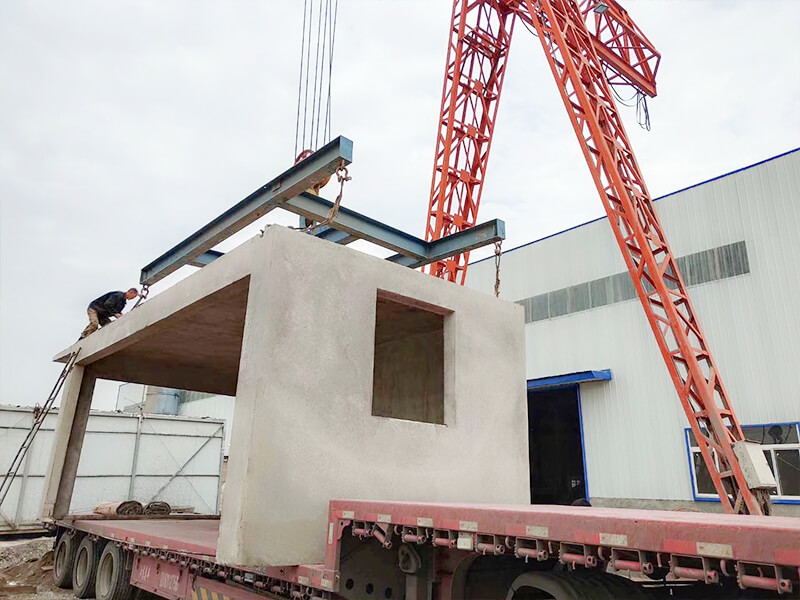

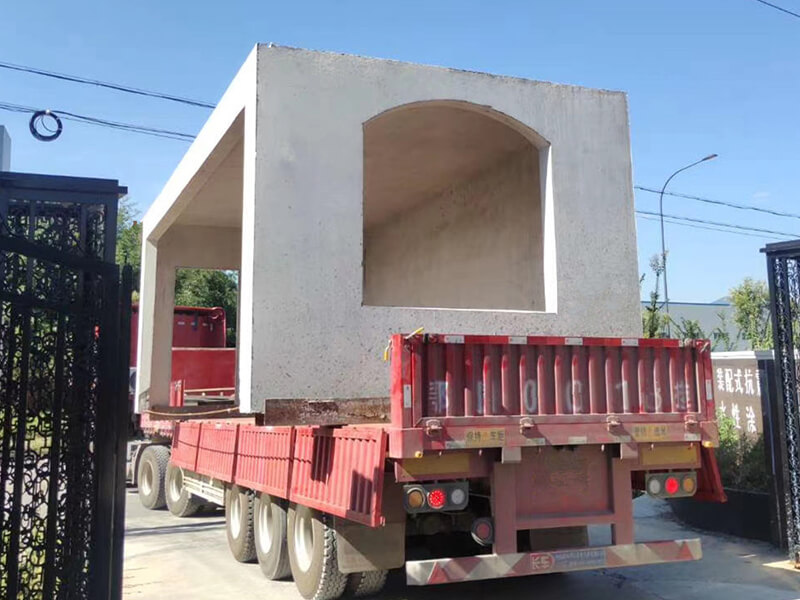

2. Concrete Modular House Features:

1)Low construction cost: The construction cost is only half of traditional brick and concrete house.

2)Fast construction speed: High level of prefabrication, 500 square meters can be built in one day, greatly increases construction speed

3)Earthquake resistance: It can withstand magnitude 9 earthquake and will not collapse as a whole due to partial damage, because each unit module has its independent load-bearing structure .

4)Wind-resistant: It can withstand hurricane of 200km/h. The weight of each unit module is around 20 tons (the weight of 10 cars).

5)Energy saving and ECO friendly: Achieved zero construction waste and zero noise pollution during the construction process , can be remove and reuse when demolition .

6)Long life: Lifetime of reinforced-concrete structure can reach more than 100 years

7)Fire retardant: Reinforced concrete structure solid wall, fire resistance time is long.

8)Soundproof: The amount of sound insulation of the wall can reach more than 65dB.

9)Heat insulation: Reinforced concrete structure solid wall has good heat  insulation

10)Flexible assembly: Can be assembled into various styles houses and buildings, each room can be assembled by one or more units modules , five story building can be assembled .


3. after-sale service

1) Training support

We will send engineers to assist partners on site until partners master all,such as  equipment debugging,training workers,house  assembly , house decoration,sales guidance, etc.

2) Decoration materials support

Our factory also produces various new interior and exterior wall decoration materials for concrete modular house.We supply them at low price to support partners, so that partners can provide their end-customers with one- stop services from house building to decoration to maximize the profits.

3) Design support

Our designer team will provide partners with house designs for long time,and help partners to meet the needs of their end-customers. Until partners can make the designs by themselves.

4) Project support

If partners get some big project that they can not hand well , we will give online guidance or send engineer to help on site .

5)  Experiences and information sharing

In the later stage ,we will share our new experiences and information about products with all partners to develop the business together.
